Комплектът включва:

  • 1 брой 10G SFP+ GigaStream BIDI-10G-SFP-40A - Tx1270nm/Rx1330nm 40km single-mode Transceiver with Digital Diagnostic and Monitoring (повече информация)
  • 1 брой 10G SFP+ GigaStream BIDI-10G-SFP-40B - Tx1330nm/Rx1270nm 40km single-mode Transceiver with Digital Diagnostic and Monitoring (повече информация)

Applications:

IEEE 802.3ae-2002 = Standard 10G BASE LR = Data Rate 10.3125 GBd


*10G Fiber Channel = Standard 1200-SM-LC-L = Data Rate 10.51875 GBd
*8G Fiber Channel = Standard 800-SM-LC-L = Data Rate 8.5 GBd
*4G Fiber Channel = Standard 400-SM-LC-L = Data Rate 4.250 GBd
*2G Fiber Channel = Standard 200-SM-LC-L = Data Rate 2.125 GBd
*Модули поддържащи Fiber Channel се доставят с предварителна заявка.

  • 1270nm / 1330нм DFB laser transmitter
  • Distance up to 40km
  • Power budget 16dB at least
  • Multirate compliance for Ethernet and Fiber Channel
  • Single 3.3V Power supply and TTL Logic Interface
  • Sub watt power consumption: >1,5W
  • Single LC Connector Interface
  • *Digital Diagnostic and Monitoring (DDM)
  • Hot Pluggable
  • Compliant with MSA SFP+ Specification SFF-8431
  • Compliant to SFP+ Mechanical MSA SFF-8432
  • Compliant with IEEE 802.3ae 10GBASE-LR/LW
  • Laser Class 1 IEC / CDRH compliant
  • RoHS 6/6 compliant
  • Operating Case Temperature: 0C to +70C

* Digital Diagnostic and Monitoring Ви дава възможност да следите в реално време най-важните параметри на оптичния линк - оптична изходна мощност, затихване по трасето, температура и захранващо напрежение на SFP+ модула.

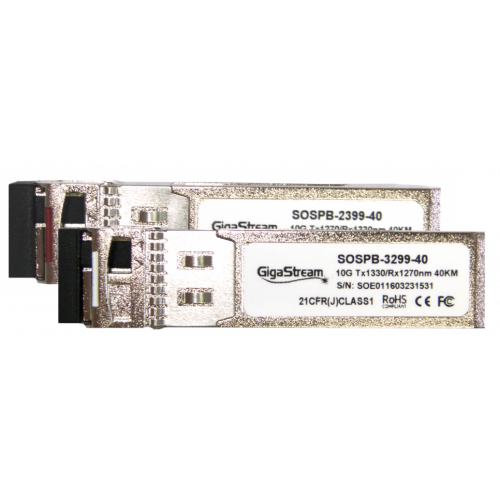

10G SFP+ Modules PACK GigaStream BIDI-10G-SFP-40 A и B - 40km single-mode Transceiver with DDM

  • Brand: GigaStream
  • Product Code: 1024
  • Product Model: 10G-SFP+
  • Availability: In Stock
  • 135.00лв.

  • Inc Tax: 162.00лв.

Make a quick order by leaving your name and phone only. Our employee will contact you.
