• PTFE - 50 Ohm - double screen
  • Centre conductor Steel- Copper+Silver plated Strand-07 0.54 mm
  • Dielectric PTFE
  • Outer conductor Copper, Silver plated Braid, 96 % 2 mm
  • Outer conductor Copper, Silver plated Braid, 91 % 2.5 mm
  • Jacket FEP RAL 8015 - br 3 mm +/- 0.1

Electrical Data

  • Impedance 50 ohm +/- 2 ohm
  • Max. operating frequency 6 GHz
  • Capacitance 97 pF/m
  • Velocity of signal propagation 69 %
  • Signal delay 4.86 ns/m
  • Insulation resistance ≥ 1 x 108 Mm
  • Min. screening effectiveness > 80 dB (up to 6 GHz)
  • Max. operating voltage 0.85 kVrms (at sea level)
  • Test voltage 1.7 kVrms (50 Hz/1 min)

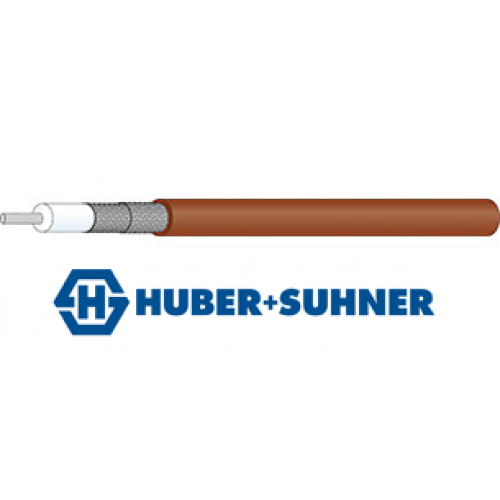

Coaxial Cable Huber+Suhner K 02252 D 50+

  • Product Code: 1182
  • Product Model: K-02252-D
  • Availability: In Stock
  • 16.00лв.

  • Inc Tax: 19.20лв.

Make a quick order by leaving your name and phone only. Our employee will contact you.
