• 4 порта (1G/10G) SFP+

  • 20 порта 100M/1G SFP Port

  • 4 порта GbE RJ45/SFP Combo Port

FGS-2728KX L2+ Managed Switch is a next-generation Carrier Ethernet Switch offering full suite of L2 features, L3 Static Route and Carrier Ethernet features such as OAM, CFM and 1588v2 PTP, etc, which delivers better cost performance and lower total cost of ownership in Enterprise networks via fiber connections.

FGS-2728KX delivers 20 GbE SFP ports, 4 Combo GbE RJ45/SFP ports, 4 GbE/10G SFP+ ports, RJ45 Console port and OOB Management port with built-in AC and DC dual power supply. FGS-2728KX provides front access to all data and management ports that facilitates desktop or rack-mount installations for Carrier/Telecom providers.

FGS-2728KX is ideal for environments that require advanced features for granular control which is a must for easy network configuration and management where you need for a successful installation for high-bandwidth VoIP, Gigabit-to-the-Desktop deployments, converged voice and data networks in Carrier Ethernet Applications.

Характеристики:

  • 4 порта (1G/10G) SFP+
  • 20 порта 100M/1G SFP Port
  • 4 порта GbE RJ45/SFP Combo Port
  • Console Port DB9
Port Configuration
100M/1G SFP Port 20
GbE RJ45/SFP Combo Port 4
1G/10G SFP+ Port 4
Console Port DB9
Total Ports 28
PoE Function
IEEE802.3at (PoE+ 30W) --
IEEE802.3af (PoE 15.4W) --
UPoE(60W) --
PoE Port --
Available PoE Power --
HW Performance
Switching Bandwidth 128Gbps
Forwarding Performance 95.232Mpps
MAC Address 32K
Jumbo Frames 10056 Bytes
Environmental Specification
Operating Temperature -20°C to 60°C
Operating Humidity 10 to 90% RH
Storage Temperature -25 to 70°C
Storage Humidity 10 to 90% RH
Mechanical Specification
Dimensions (H) x (W) x (D) mm 44 x 442 x 211
Weight 3.1 Kg
FAN Less --
Power Source
AC Input 100V-240V
DC Input 24V ~ 72V DC
Dual Input AC/DC
Certifications
EN61000-4-5 (for RJ45 Port, Surge 6KV) --
Certifications CE/FCC Class A
Others by Request
L2 Switching
Spanning Tree IEEE802.1D (STP) Y
IEEE802.1W (RSTP) Y
IEEE802.1S (MSTP) Y
VLAN 802.1Q VLAN Y
Port-Based Y
VLAN Entries 4K
Private VLAN Y
Voice VLAN Y
Guest VLAN Y
Q-in-Q Y
802.1v Protocol VLAN Y
MAC-Based VLAN Y
IP Subnet-Based VLAN Y
IEEE 802.3ad LACP Dynamic Trunk Y
Static Trunk Y
GARP/GVRP Y
IGMP Snooping Y
MLD Snooping Y
Multicast VLAN Registration (MVR) Y
L3 Features
Static Route Y
DHCP Server Y
QoS Features
Class of Service Port Based Y
802.1p Y
DSCP Y
TCP/UDP Port Y
Rate Limiting Ingress Y
Egress Y
Priority Queue Scheduling WRR Y
Strict Priority Y
Hardware Queues 8
Security
ACLs L2/L3/L4 Y
IPv6 Support Y
Port Security (MAC-based) Y
IP Source Guard Y
Storm Control Y
RADIUS Authentication 802.1x Y
TACACS+ Authentication Y
HTTPs and SSL (Secured Web) Y
BPDU Guard Y
STP Root Guard Y
DHCP Snooping Y
Loop Protection Y
Management
DHCP Client Y
Relay Y
Option 66 Y
Option 67 Y
Option 82 Y
Event/Error Log Syslog Y
SMTP (RFC821) Y
Management Access Filtering SNMP Y
Web Y
Telnet Y
SSH Y
PoE Management Scheduling --
Auto-Checking --
Power Delay --
SNMP (v1, v2c, v3) Y
RMON ( 1,2,3 & 9 Groups) Y
Software Upgrade Y
Configuration Export/Import Y
Port Mirroring Y
LLDP (IEEE802.1AB) Y
LLDP-MED (IEEE802.1AB) Y
CDP Aware Y
sFlow Y
IPv6 Management Y
NTP Y
Carrier Ethernet
SyncE --
1588v2 PTP Y
1588v2 PTP (stratum3) --
OAM (IEEE802.3ah) Y
CFM (IEEE802.1ag) Y
PM (ITU-T Y.1731) Y
ELPS (ITU-T G.8031) Y
ERPS (ITU-T G.8032) Y
Rapid-Ring --
Device Management System
Device Management Topology View Y
Floor View Y
Map View Y
Dashboard Y
Traffic Monitoring Y
Cable Diagnostics Y
Switch2go iOS Devices Y
Android Devices Y
Find my Switch iOS Devices Y
Android Devices Y
Tech Support Online Y
OOB MGMT Port Y

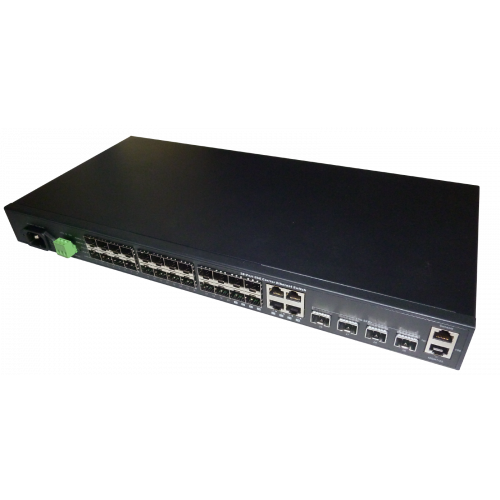

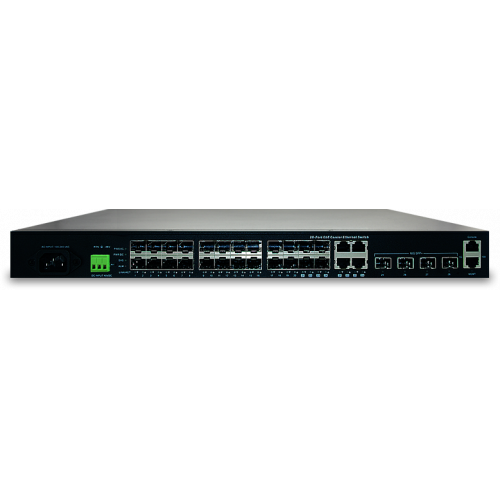

Layer 2 Plus Carrier 28-port optical switch FGS-2728KX (4-Port 10G SFP+)

  • Product Code: 1173
  • Product Model: FGS-2728KX
  • Availability: In Stock
  • 1,083.33лв.

  • Inc Tax: 1,300.00лв.

Make a quick order by leaving your name and phone only. Our employee will contact you.
