ST800K-А Optical Power Meter can test optical power within the range of 800~1700nm wave length. There are 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm, six kinds of wavelength calibration points. It can be used for linearity and non-linearity test and it can display both direct and relative test of optical power.
- Multi-wavelength precise measurement
- Absolute power measurement of dBm or μw
- Relative power measurement of dB
- Low voltage indication
- 270, 330, 1K, 2KHz frequency light identification and indication
- FC,ST,SC adapter
- Handheld, large LCD backlight display, easy-to-use
- Wavelength range (nm): 800~1700
- Detector type: InGaAs
- Standard wavelength(nm): 850, 1300, 1310, 1490, 1550, 1625
- Power testing range (dBm): -50～+26
- Uncertainty: ±5%
- Resolution: Linearity: 0.1%, Logarithm: 0.01dBm
- Working temperature (℃): -10~+50
- Storage temperature (℃): -30~+60
- Weight (g): 430 (without batteries)
- Dimension (mm): 200×90×43
- Battery: lithium battery 4,7V 2000mAh
- Auto power off time (min): 10

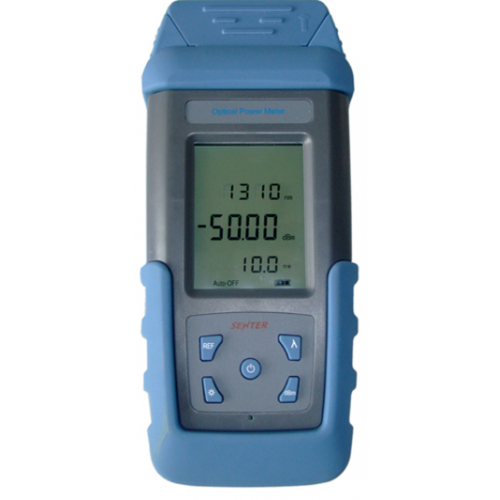

Optical power meter ST800K-A
- Product Code: 1033
- Product Model: ST800K-A
- Availability: Out Of Stock
-
216.00лв.
- Inc Tax: 259.20лв.
