- Hand-held design, compact and lightweigh
- Shockproof and appropriate for field operation
- Starting in 3 seconds measuring immediately
- Narrow event blind zone, simple test of fiber patchcord
- High Capacity SD card
- Low-power design, optical lithium battery or AA-size alkaline batteries
- VFL (Visual Fault Location) function
- OTDR Viewer software for data analysis
- Light alarm function, preventing the device from being damaged by the signal light
Specification
- Wavelength 1310/1550
- Single mode fiber
- Dynamic Range (dB) 28/26
- Pulse Duration(ns) 10ns/20/50/100/200/500/1000/2000/5000/10000/20000
- Dead Zone(m) ＜3m(Reflective Event); <10m（Non-reflective Event）
- Attenuation Detect Accuracy(dB/dB) ±0.05
- loss Resolution(dB) 0.01
- Sampling Resolution(m) 0.16 - 5
- Distance Measure Accuracy(m) ±(1m+5×10-5×distance+sampling space)
- Max Measuring Distance (km) 1-120Km
- Data Storage ＞10000 records
- Averaging Time 5s,15s,30s,1min,2min,3min
- Visible Fault Locator Wavelength: 650nm; Farthest distance test: 5km
General Specification
- Dimensions(H×W×T) 210*112*67mm
- Weight 1kg
- Operating Temperature 0℃-50℃
- Temperature Storage Temperature -20℃-60℃
- Relative Humidity 0%-95%(non-condensing)
- Battery life ＞8 hours
- Connector SC/PC
- USB and SD card

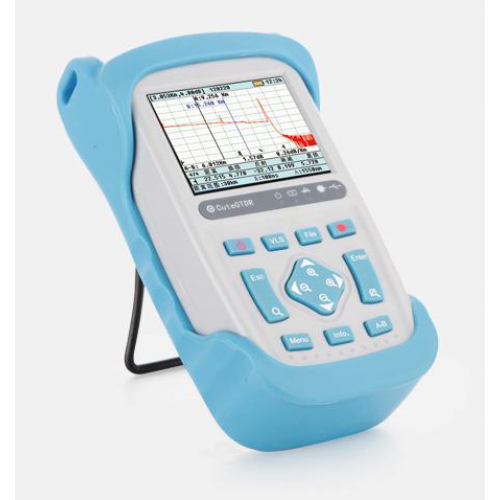

OTDR ST3300
- Product Code: 1046
- Product Model: ST3300
- Availability: Out Of Stock
-
4,380.00лв.
- Inc Tax: 5,256.00лв.
