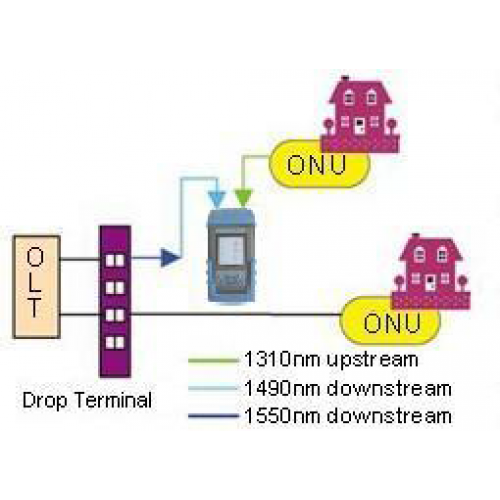

• Test 3 wavelengths power of PON system synchronously: 1490nm, 1550nm, 1310nm
  • Suitable for all PON network (GPON, EPON)
  • User-defined Threshold Sets
  • Supply 3 groups of threshold values; analyze and display pass/fail status
  • Relative value (differential loss)
  • Save and upload the records to computer
  • Set threshold value, upload data, and calibrate wavelength through management software
  • 32 digits CPU, easy to operate, simple and convenient
  • Auto power off, auto backlight off, low voltage power off
  • Cost efficient palm size designed for field and lab testing
  • Easy-to-use interface with large display for easy visibility

Specifications

  • Standard wavelengths
    • 1310 (upstream)
    • 1490 (downstream)
    • 1550 (downstream)
  • Pass zone(nm) 1260~1360 1470~1505 1535~1570
  • Range(dBm) -40~+10 -45~+10 -45~+23
  • Isolation @1310nm(dB) >40(1490) >40(1550)
  • Isolation @1490nm(dB) >40(1310) >40(1550)
  • Isolation @1550nm(dB) >40(1310) >40(1490)

Accuracy

  • Uncertainty(dB) ±0.5
  • Polarization Dependent Loss (dB) <±0.25
  • Linearity(dB) ±0.1
  • Through Insertion Loss(dB) <1.5
  • Resolution 0.01dB
  • Unit dBm / xW

General Specifications

  • Storage number 99 items
  • Auto backlight off time 30 30 seconds without any operation
  • Auto power off time 10 minutes without any operation
  • Battery 7.4V 1000mAh rechargeable Lithium battery
  • Continuous working 18 hours for Lithium battery; about 18 hours for dry battery too
  • Working temperature -10~60℃
  • Storage Temperature -25~70℃
  • Dimension (mm) 200*90*43
  • Weight (g) About 330

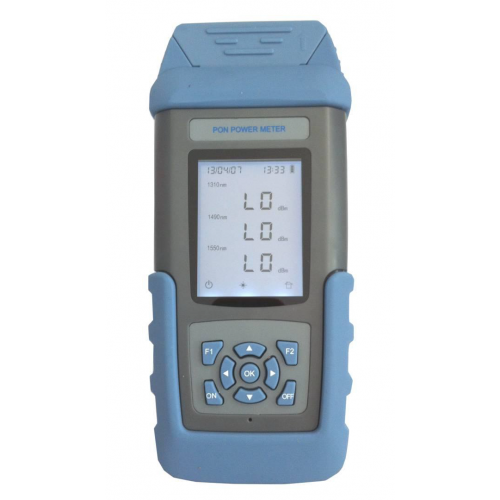

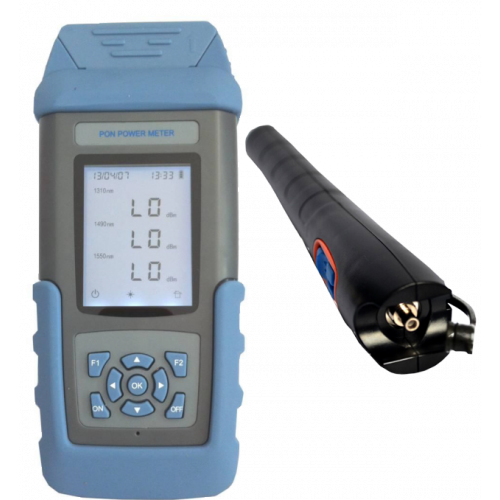

PON Power Meter ST805C-B + ST816

  • Product Code: 1039
  • Product Model: ST805C-B-VFL
