Applications:

IEEE 802.3ae-2002 = Standard 10G BASE SR = Data Rate 10.3125 GBd
10G Fiber Channel = Standard 1200-Mx-SNI = Data Rate 10.51875 GBd
8G Fiber Channel = Standard 800-Mx-SN-I = Data Rate 8.5 GBd
4G Fiber Channel = Standard 400-Mx-SN-I = Data Rate 4.250 GBd
2G Fiber Channel = Standard 200-Mx-SN-I = Data Rate 2.125 GBd

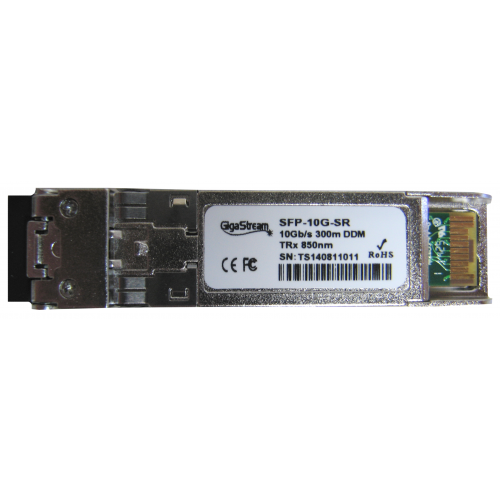

• 850nm VCSEL Transmitter
• Distance up to 300m @50 / 125 um MMF
• Operating data rate up to 10.3Gbps
• Multirate compliance for Ethernet and Fiber Channel
• Single 3.3V Power supply and TTL Logic Interface
• Sub watt power consumption: 0.65W
• Duplex LC Connector Interface
• *Digital Diagnostic and Monitoring (DDM)
• Hot Pluggable
• Compliant with MSA SFP+ Specification SFF-8431
• Compliant to SFP+ Mechanical MSA SFF-8432
• Compliant with IEEE 802.3ae 10GBASE-SR/SW
• Dispersion tolerance up to 40ps/nm over G.651
• Operating Case Temperature: 0C to +70C

* Digital Diagnostic and Monitoring DDM gives the ability to monitor real-time parameters of the SFP, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.
