• Test the distance between two points and dynamically display the distance between two cursors.
  • Test the loss between two points and the loss constant of the optical fiber and cable.
  • Test the joint loss.
  • Auto-optimization and quick response.
  • Search for the event points automatically.
  • The function of wave form storage: it can store the wave form data and test condition into the disk and the stored information also can display again.
  • Optical output connector - SC and FC (incl.)
  • Wavelengths - 1310nm/1550nm ±20nm
  • Dynamic Range - 28/26dB
  • Fiber Under Test - single mode
  • Range(km) - 0.5, 1, 2, 4, 8, 16, 32, 64, 128
  • Working width half-amplitude pulse(ns) - 10, 80, 160, 320, 640, 1280, 2560, 5120,10240
  • Event Dead Zone ≤5m
  • VFL (universal connector) with range >5km
  • Capacity of storage 500 result
  • Sampling points - 16384
  • The highest sampling distinguish ability 0.25m
  • The accuracy of testing length ± (1m + sampling interval + test value×0.05%) (excluding the error due to refractive index).
  • The accuracy of testing loss ±0.075dB
  • Display - 320×240 3.5 inch colored LCD (touch screen)
  • Port - USB port
  • Bag included
  • Power Consumption about 4 W
  • Power supply - 8,4V 5200 mAh Lithium battery, AC 100~240V 50/60Hz 8.4V 0.5A

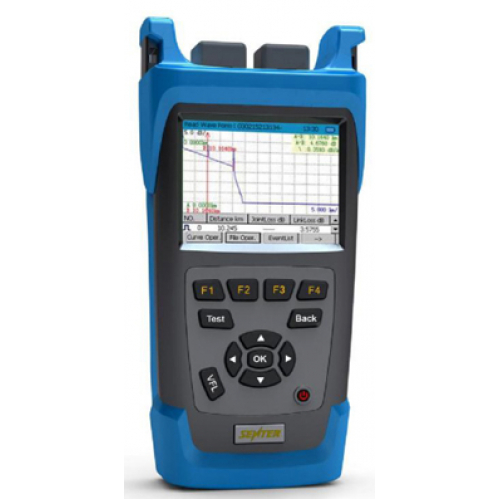

OTDR ST3200

  • Product Code: 1045
  • Product Model: ST3200
  • Availability: Out Of Stock
  • 5,180.00лв.

  • Inc Tax: 6,216.00лв.

Make a quick order by leaving your name and phone only. Our employee will contact you.
