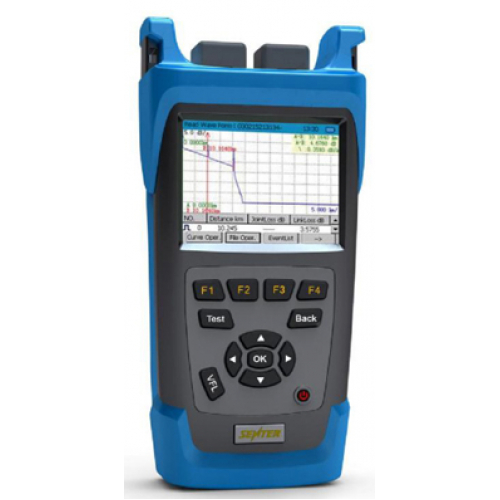

ST3200 OTDR

Test the distance between two points and dynamically display the distance between two cursors.
Test the loss between two points and the loss constant of the optical fiber and cable.
Test the joint loss.
Auto-optimization and quick response.
Search for the event points automatically.
The function of wave form storage: it can store the wave form data and test condition into the disk and the stored information also can display again.

Optical output connector - SC and FC (incl.)
Wavelengths - 1310nm/1550nm ±20nm
Dynamic Range - 28/26dB
Fiber Under Test - single mode
Range(km) - 0.5, 1, 2, 4, 8, 16, 32, 64, 128
Working width half-amplitude pulse(ns) - 10, 80, 160, 320, 640, 1280, 2560, 5120,10240
Event Dead Zone ≤5m
VFL (universal connector) with range >5km
Capacity of storage 500 result
Sampling points - 16384
The highest sampling distinguish ability 0.25m
The accuracy of testing length ± (1m + sampling interval + test value×0.05%) (excluding the error due to refractive index).
The accuracy of testing loss ±0.075dB
Display - 320×240 3.5 inch colored LCD (touch screen)
Port - USB port
Bag included
Power Consumption about 4 W
Power supply - 8,4V 5200 mAh Lithium battery, AC 100~240V 50/60Hz 8.4V 0.5A
