• Complies with IEEE 802.3-2005& CTC 2.1
  • IEEE 802.3-2005 compliant EPON ONU device
  • Up to 1.25Gbps for upstream/ downstream speed
  • Maximum transfer distance up to 20Km
  • Complies with IEEE 802.3-2005& CTC 2.1
  • IEEE 802.3-2005 compliant EPON ONU device
  • Up to 1.25Gbps for upstream/ downstream speed
  • Maximum transfer distance up to 20Km
  • Automatic discovery and authorization, plug and play
  • AES-128 encryption
  • Customized Quality of Service for assured SLA
  • IEEE 802.1p priority (SP/WRR/SP+WRR)
  • Advanced Layer2 switching features, IGMP Snooping, IEEE 802.1q VLAN, Rate Limitation, MAC Address management
  • Supports Dying Gasp function
  • Supports Triple churning
  • Remote management based on OAM, Local management through Web-based GUI

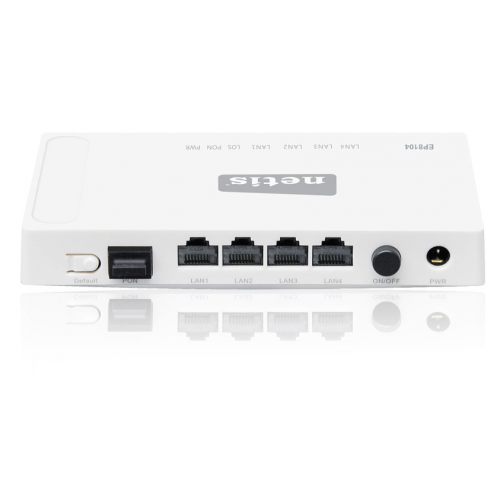

  • 1* SFF/SC PON port, 4* 10/100Mbps auto-negotiation and auto-MDI/MDIX RJ45 LAN ports
Hardware
Interface 1 * SFF/SC PON port
4 * 10/100Mbps auto-negotiation and MDI/MDIX RJ45 LAN port
Data Rate Upstream 1.25Gbps
Downstream 1.25Gbps
Distance 0-20KM
Splitting Ratio 1:32(20KM) 1:64(10KM)
Optical Power -1~+4dBm
Receive Sensitive -25.5dBm

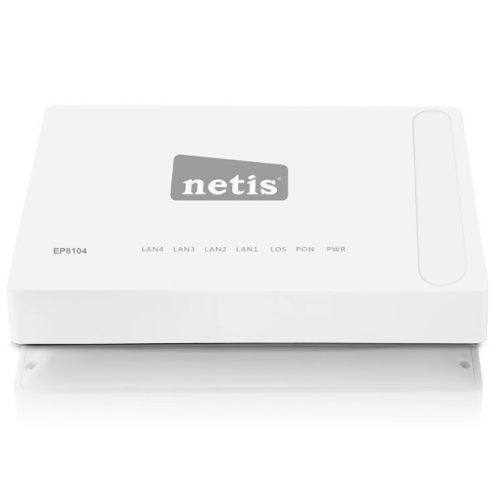

LED LAN4-LAN1LOS PON PWR
Button Power on/off
Default
Power Adapter External 12V1A
Power consumption <10W (MAX)
Dimensions(L x W x H ) 143(L)*87(W)*29 (H)mm
Weight 127g
Software
Standard IEEE 802.3-2005 IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX,
IEEE 802.1p, IEEE 802.1q
QoS Service Flow Classification based on MAC Address/VLAN/ IP Address
/DSCP /L4 port,
802.3x flow control,
Schedule rules Support SP/WRR/SP+WRR,
Upstream Priority Label Support 802.1p User Priority,
Rate Limit and Traffic shaping,
Congestion Control Support Tail-Drop/WRED/RED
VLAN 802.1Q tag VLAN,
VLAN transparent mode/VLAN translation mode/VLAN trunk mode
Advanced Features Authentication based on Loid and Password,or base on MAC
Upstream and Downstream FEC,
Dynamic Bandwidth Allocation(DBA) ,
Optical power detection, Dying Gasp,
Terminal Silent mechanism,
Ethernet port loop testing
Security AES Encryption,
Triple churning
Illegal Frame/Illegal Multicast Filtering
Management Managed by Web and OAM,
Specified the management IP/MAC,
Reset to Factory default by Reset button or Web UI,
Real-time statistics, Optical Diagnostic, System Log
IGMP IGMP v2/v3
IGMP Snooping
Others
Environment Operating Temperature: 0℃~40℃(32°F~104°F)
Storage Temperature: -40℃~70℃(-40°F~158°F)
Operating Humidity: 10%~90% non-condensing
Storage Humidity: 5%~90% non-condensing
Package 1 * EP8104
1 * 12V/1A Power Adapter
1 * Ethernet Cable
1 * Quick Installation Guide

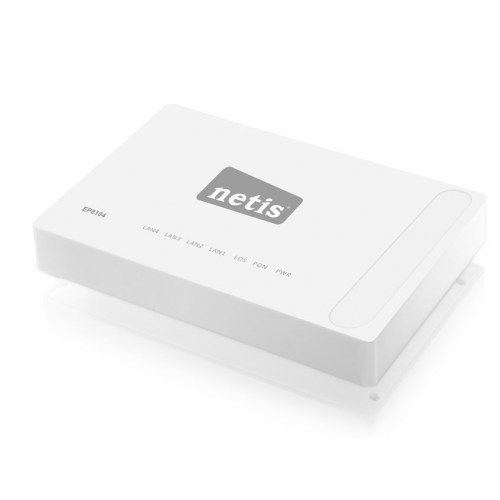

EP8104 - 4 Ports Fast Ethernet EPON Terminal
