• 4-Port 10/100Mbps 802.3af/at PoE
  • 1-Port 10/100Mbps uplink
  • PoE 802.3af 60 Watts
  • Изключително компактен

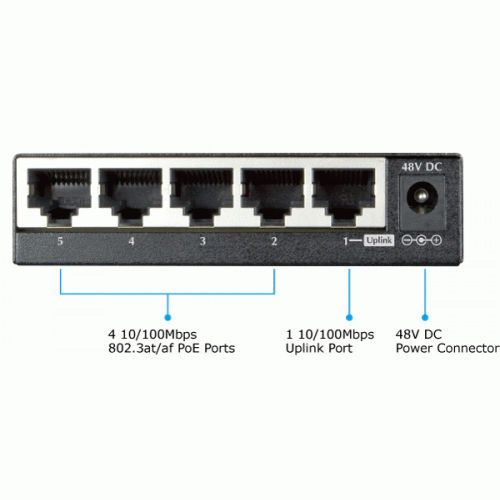

Network Connector 5-Port RJ-45 for 10/100Base-TX, auto MDI / MDIX
PoE Inject Port 4 ports with 802.3at / af PoE injector function (port 2 to port 5)
LED Display System: Power (Green)
Per PoE port:PoE (Orange, port 2 to port 5)
LNK/ACT (Green, port 1 to port 5)
Switch Architecture Store and Forward switch architecture
MAC Address Table 1K MAC address table with auto learning function
Switch Fabric 1Gbps
Switch Throughput 0.74Mpps @64Bytes
Maximum Packet Size 1536Bytes
Flow Control Back pressure for Half-Duplex. IEEE 802.3x Pause Frame for Full-Duplex
Power Requirements DC 56V, 1.5A. (захранващ адаптер включен в комплекта)
Power Consumption Max.62 watts / 211.5 BTU
Dimensions (W x D x H) 90 x 80 x 21 mm
Weight 172g
Power over Ethernet
PoE Standard IEEE 802.3af Power over Ethernet / PSE
IEEE 802.3at Power over Ethernet Plus / PSE
PoE Power Supply Type Mid-Span
Power Pin Assignment 4/5(+), 7/8(-)
PoE Power Output Per Port 56V DC, 375mA. Max. 15.4 watts (IEEE 802.3af)
Per Port 56V DC, 375mA. Max. 30 watts (IEEE 802.3at)
PoE Power Budget 60 watts
Number of 802.3af PD Class 0, 1, 2, 3 can be powered 4
Number of 802.3at PD Class 1, 2, 3 can be powered 4
Number of 802.3at PD Class 0, 4 can be powered 2
Standard Conformance
EMI Safety FCC Class A, CE
Standard Compliance IEEE 802.3:Ethernet
IEEE 802.3u:Fast Ethernet
IEEE 802.3x:Flow Control
IEEE 802.3af:Power over Ethernet
IEEE 802.3at:High Power over Ethernet
Operating Environment 0 ~ 50 degrees C
Storage Environment -10 ~ 70 degrees C
Operating Humidity 5 ~ 95%, relative humidity, non-condensing
Storage Humidity 5 ~ 95%, relative humidity, non-condensing

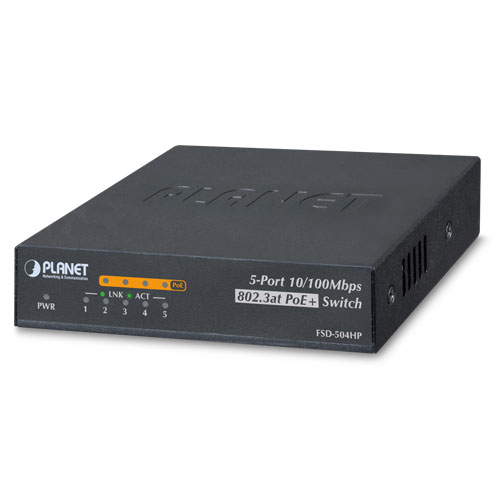

FSD-504HP - 5 портов 60W PoE switch (4 port PoE)

  • Код: 818
  • Модел: FSD-504HP
  • Наличност: Разпродаден
  • 124.00лв.

  • с ДДС: 148.80лв.

Направете бърза поръчка, като оставите само вашето име и телефон. Наш служител ще се свърже с вас.
