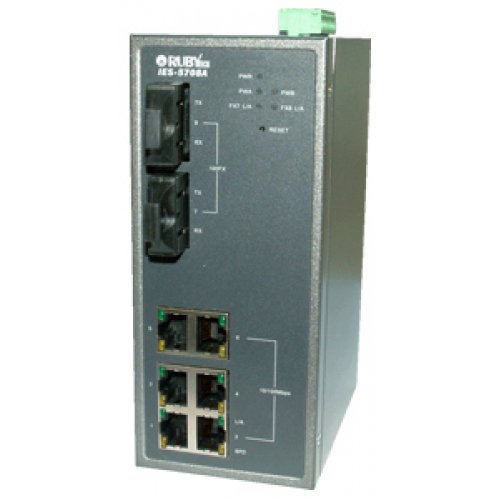

IES-5708A is an industrial unmanageable Fast Ethernet switch that supports 6 10/100Base-TX (RJ-45 connectors) ports + 2 100Base-FX. It is a standard switch that meets all IEEE 802.3/u/x Fast Ethernet specifications. IES-5708A has a built-in relay output function that sends alarm immediately when detecting power failure, allowing maintenance engineers to respond in no time.

Key Features

• 6 port 10/100Base-TX (RJ-45 connectors) ports + 2 100Base-FX
• -40C ~ 75C operating temperature
• Supports Full/Half Duplex, auto-negotiation
• Supports MDI/MDI-X on TP ports
• DIN-Rail/Wall mount ability
• Alarm contact
• Reverse power polarity protection
• Dual power inputs through removable terminal block, DC24V (12~48V)
• RoHS compliance

Hardware Specification

• Power Requirement - 24VDC(12~48V)
• Power Consumption - 6.2W
• Operating Temperature -40C to +75C
• Humidity - 5% to 95%
• Dimensions 66(W) x 152(H) x 102(D) mm
• Installation - DIN-Rail (Wall Mount: Optional)
• Alarm contact - Current carrying capacity 1A @ 24V
• EMI - Comply with FCC Part 15 Class A & CE Mark Approval
• Shock - IEC60068-2-27
• Freefall - IEC60068-2-32
• Vibration - IEC60068-2-6
• MTBF - 97000 hrs
• Casing IP30

Models:

• IES-5708ASC - Industrial 6-Port Unmanageable Fast Ethernet Switch + 2-Port Optic Fiber, SC Multi-Mode
• IES-5708AST - Industrial 6-Port Unmanageable Fast Ethernet Switch + 2-Port Optic Fiber, ST Multi-Mode
• IES-5708ALC - Industrial 6-Port Unmanageable Fast Ethernet Switch + 2-Port Optic Fiber, LC Multi-Mode
• IES-5708ASC.S05 - Industrial 6-Port Unmanageable Fast Ethernet Switch + 2-Port Optic Fiber, SC Single-Mode 5km
• IES-5708ASC.S20 - Industrial 6-Port Unmanageable Fast Ethernet Switch + 2-Port Optic Fiber, SC Single-Mode 20km
• IES-5708ASC.S40 - Industrial 6-Port Unmanageable Fast Ethernet Switch + 2-Port Optic Fiber, SC Single-Mode 40km
• IES-5708ASC.S60 - Industrial 6-Port Unmanageable Fast Ethernet Switch + 2-Port Optic Fiber, SC Single-Mode 60km
• IES-5708ABS3.S20 - Industrial 6-Port Unmanageable Fast Ethernet Switch + 2-Port Optic Fiber, BiDi SC Single-Mode 20km, 1310nm
• IES-5708ABS5.S20 - Industrial 6-Port Unmanageable Fast Ethernet Switch + 2-Port Optic Fiber, BiDi SC Single-Mode 20km, 1550nm
