Всички индустриални суичове могат да бъдат доставени само с предварителна заявка и срок, който подлежи на договаряне. Свържете се с нас за повече информация.

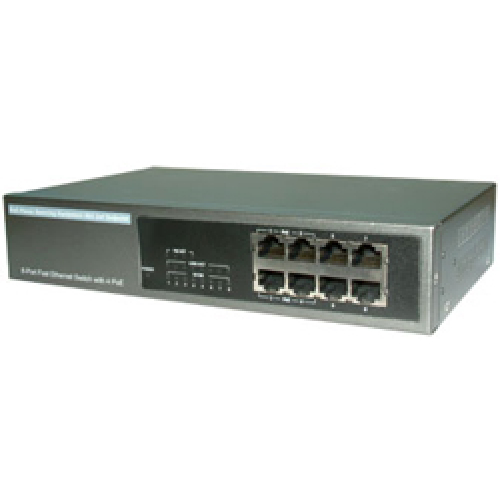

PoE allows power to be supplied to end devices, such as Wireless Access Points or VoIP Phones, directly through the existing LAN cables. By supplying the power end-span, you can centralize power distribution and backup without the need to increase infrastructure.

Key Features

• Conforms to IEEE 802.3 10BASE-T, IEEE802.3u 100BASE-TX and IEEE 802.3x flow control standards
• Supports 10/100Mbps auto-detect half/full duplex
• Supports TP interface auto MDI/MDI-X function for auto TX/RX swap
• Supports 802.3x flow control pause packet for full duplex
• LEDs to indicate: Link/Act, Speed, Power Status and PoE activity
• Alarm contact function
• DIN-Rail,Wall mount and Desktop for easy installation
• RoHS Compliance

PoE Features

• Supports IEEE 802.3af compliant
• 8-Port 10/100BaseT(X)
• 4-Port PoE
• Supports Power over Ethernet (PSE) on each PoE-TP port (End-Point)
• Full power(15.4w) support for per PoE-TP port
• Auto detect powered device and consumption levels
• Smart feature for PD on/off, PD detection, power level, PD status and power feeding priority(X)
• Automatic Fault Detection(Over/Under Voltage & Current)
• Thermal shutdown protection(Tj > 150C)
• LED indicators for and PoE activity

Hardware Specification

• Power Requirement - DC 48V (Power input by terminal block)
• Power Consumption - 65W
• Alarm Relay - 1A@24V
• Operating Temperature -10C to +60C
• Humidity - 44(W) x 220(H) x 130.5(D) mm
• Installation - DIN-Rail (Wall Mount: Optional)
• EMI - Comply with FCC Part 15 Class A & CE Mark Approval
• Shock - IEC60068-2-27
• Freefall - IEC60068-2-32
• Vibration - IEC60068-2-6
• Casing IP30
