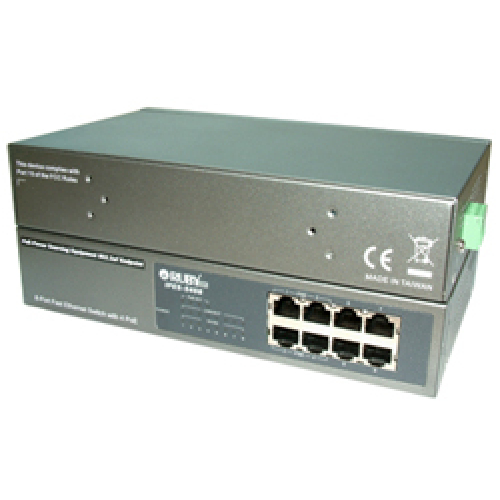

IPES-5408T is an Industrial Unmanageable Fast Ethernet switch that supports 8 10/100 Base-TX ports. It is a standard switch that meets all IEEE802.3/u/x Fast Ethernet specifications. IPES-5408T has a build-in relay output function that sends alarm immediately when detecting power failure, allowing maintenance engineer to respond in no time. PoE allows power to be supplied to end devices, such as Wireless Access Points or VOIP Phones, directly through the existing LAN cables. By supplying the power end span, you can centralize power distribution and backup without the need to increase infrastructure. Key Features

• 8 10/100Base-TX (RJ-45 connectors) with 4 PoE ports
• -40C ~ 75C operating temperature
• Supports Full/Half Duplex, auto-negotiation
• Supports MDI/MDI-X on TP ports
• Supports 802.3x flow control pause packet for full duplex
• LEDs to indicate: Link/Act, Speed,Power Status and PoE activity
• Dual power inputs through terminal block, DC48V
• DIN-Rail and Wall Mount for easy installation
• Alarm contact
• Reverse power polarity protection
• RoHS compliance

PoE Features

• Supports IEEE 802.3af compliant
• Supports Power over Ethernet (PSE) on each PoE-TP port (End-Point)
• Supports full power(15.4w) for 4 PoE-TP port
• Auto detect powered device and consumption levels
• Thermal shutdown protection(T >150C)

Hardware Specification

• Power Requirement - 48VDC
• Power Consumption - 65W
• Operating Temperature -40C to +75C
• Humidity - 5% to 95%
• Dimensions 44(W) x 220(H) x 103.5(D) mm
• Installation - DIN-Rail (Wall Mount: Optional)
• EMI - Comply with FCC Part 15 Class A & CE Mark Approval
• Shock - IEC60068-2-27
• Freefall - IEC60068-2-32
• Vibration - IEC60068-2-6
• Casing IP30
