Всички индустриални суичове могат да бъдат доставени само с предварителна заявка и срок, който подлежи на договаряне. Свържете се с нас за повече информация.

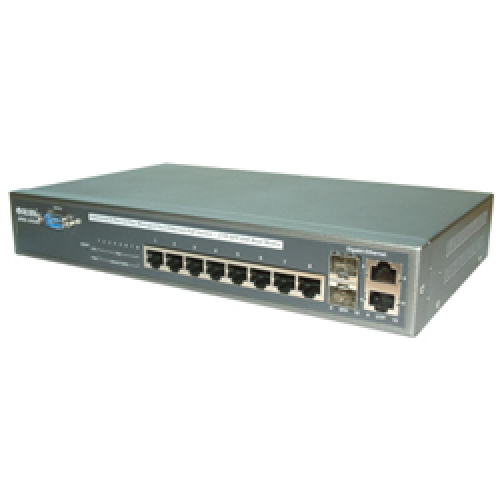

IPES-2410C is an industrial Managed Fast Ethernet switch that supports SNMP, Web UI and CLI management interface and with 8 10/100Base-TX (RJ-45 connectors) and 2 Gigabit dual media (RJ-45/SFP).The switch implements the QoS (Quality of Service), VLAN, Mac Filtering Policy, Port Mirror and full L2 protocols. It has a rich feature set suitable for streaming VoIP, video, and data traffics for multimedia applications. Port 9 and 10 support two types of media - TP and SFP Fiber (LC, Bidi-LC…); both ports support 10/100/1000Mbps TP or 1000Mbps SFP Fiber with auto-detected function. 1000Mbps SFP Fiber transceiver is used for high-speed connection expansion. For industrial automation application, redundancy is an important issue to ensure the network reliability, IPES-2410C provides R-Ring technology to enable self-recover time in less than 30ms. Others the switch increase support the Power saving for reduce the power consumption .It could efficient saving the switch power with auto detect the client idle and cable length to provide different power.

Key Features

• 8 10/100Base-TX (RJ-45 connectors)
• 2 Gigabit dual media (RJ-45/SFP)
• Supports IEEE 802.3af PoE PSE (1~8 Port)
• Supports Multicast VLAN Management for IPTV
• IP-MAC-Port binding for LAN security
• Supports DHCP Snooping and option82
• 8-Port 10/100BaseT(X), 2-Port 10/100/1000BaseTX/1000Base-FX(SFP)(MM/SM, LC/Bidi)
• Supports IEEE802.3/802.3ab/802.3ad/802.3u/802.3x/802.3z/802.1D/802.1p/802.1Q/802.1w/802.1X
• Supports SNMP, RMON, IGMP, LACP, GVRP, GARP, STP, RSTP
• R-Ring (Recover Time < 30ms) for Ethernet Redundancy
• Power Input: 48VDC (44~56V)
• -10° to 60°C operating temperature
• Alarm contact
• VLAN
• Storm Control
• QoS with four priority queues
• Port Mirroring
• LACP
• GVRP - 802.1Q with GVRP
• Multicasting
• STP/RSTP/MSTP - 802.1D/1w/1s

PoE Specification

• 8 IEEE802.3af PoE PSE ports
• Endpoint with 48VDC power through RJ-45 pin 1,2,3,6
• PoE activity LED indicator
• 130 watts of total power (15.4 watts/port)
• Auto detect powered device and consumption level
• Smart feature for PD detection, power class and power feeding priority

Hardware Specification

• Power Requirement - DC 48VDC(44~56V)
• Power Consumption - 130W
• Alarm Relay - 1A@24V
• Operating Temperature -10C to +60C
• Humidity - 44(W) x 280(H) x 167.7(D) mm
• Installation - Rack mount, Wall Mount
• EMI - Comply with FCC Part 15 Class A & CE Mark Approval
• Shock - IEC60068-2-27
• Freefall - IEC60068-2-32
• Vibration - IEC60068-2-6
• Casing IP30
