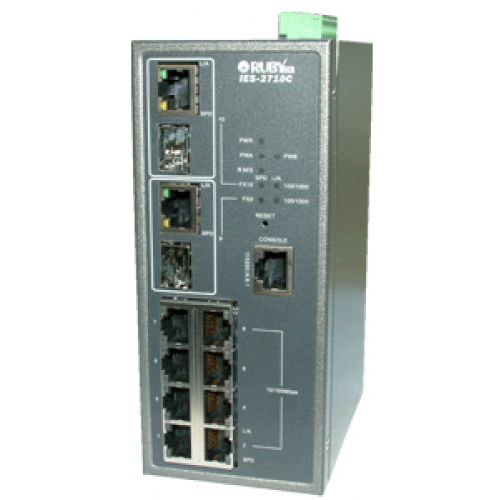

IES-2710C is an industrial 8 Fast Ethernet + 2 Gigabit L2 Managed Switch, implemented 8 port 10/100Mbps TP + 2 Gigabit dual media ports with TP/(100M/1000M SFP), is a standard switch that meets all IEEE 802.3/u/x/z Gigabit, Fast Ethernet and Ethernet specifications. The switch can be managed through RS-232 console port via direct connection, or through Ethernet port using Telnet or Web-based management unit, associated with SNMP agent. With the SNMP agent, the network administrator can logon the switch to monitor, configure and control each port’s activity in a friendly way. The overall network management is enhanced and the network efficiency is also improved to accommodate high bandwidth applications.

In addition, the switch features comprehensive and useful function such as DHCP Option 82, DHCP Snooping, QoS (Quality of Service), Spanning Tree, VLAN, Port Trunking, Bandwidth Control, Port Security, SNMP/RMON, IP-MAC Binding, MVR and IGMPv3 Snooping capability via the intelligent software. Moreover, for industrial automation application, redundancy is an important issue to ensure the network reliability, IES-2710C provides R-Ring technology to enable self-recover time in less than 30ms.

IES-2710C provide three power inputs, and it is also compatible with wide range from DC12V~48V. Dual power inputs with terminal block and built-in reverse polarity protection are designed as the redundant, the another DC jack power input is for easy plug with AC-DC adapter. It can work normally from -40~75C, the compact metal housing that rates IP30 to help against from dusty industrial environments.

Key Features

• 8-Port Fast Ethernet TP ports, plus 2-Port TP/(100M/1000M) SFP combo ports
• -40C ~ 75C operating temperature
• IEEE 802.1x Access Control Improve Network Security
• Port Mirroring Helps Supervisor Monitoring Network
• Q-in-Q VLAN for performance & security and 4094 Vlan entries
• IEEE 802.1D Compatible, 802.1w Rapid Spanning Tree and 802.1s Multiple Spanning Tree
• Unknown Unicast/Broadcast/Multicast Storm Control
• Multicast Vlan Management for IPTV
• IP-Mac-Port binding for LAN security
• ACL Based on Ethernet Type / ARP / IPv4 for packets permit or deny, rate limitation and port copy
• DHCP Snooping (Option 82)
• Support IGMPv3 Snooping
• Support power saving for green ethernet requirement.
• Redundancy: Gigabit R-Ring (Recover Time < 30ms)
• Management: Web, Telnet, Serial Console, SNMP
• Diagnostic: Port mirror, RMON, Trap, Email alert, Event log
• Three power inputs and 1 alarm relay output
• Wide range power input, DC24V (12~48V)
• DIN-Rail and Wall Mount for easy installation
• Reverse power polarity protection
• RoHS compliance

Standard compliance

• IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3x Flow Control Capability
• IEEE 802.3z 1000Base-X Ethernet
• IEEE 802.3ab 1000Base-TX
• IEEE 802.3ad LACP
• ANSI/IEEE 802.3 Auto-negotiation
• IEEE 802.1q VLAN
• IEEE 802.1d Spanning Tree Protocol
• IEEE 802.1w Rapid Spanning Tree Protocol
• IEEE 802.1s Multiple Spanning Tree Protocol
• IEEE 802.1x port-based network access control
• IEEE 802.1p Class of Service
• IEEE 802.1AB LLDP
• Subscriber Interface
• 8 port 10/100Mbps Fast Ethernet ports.
• Port 9 and 10 are 10/100/1000Mbps TP/(100Mbps or 1000Mbps)SFP Fiber auto sense
• Auto-Negotiation and Auto-MDIX
• Back pressure flow control for half duplex
• Console: RS-232 (Using RJ-45 Connector)

VSM (Virtual Stacking Management)

• Supports 16 devices stacking
• Switches can be managed via one IP address

VLAN

• Supports SVL/IVL configuration to meet your VLAN requirement
• Port-base VLAN
• IEEE802.1q tag-base VLAN, 4094 max, up to 256 active VLANs including static plus dynamic entry
• Flooding unknown VLAN frame setting, can flood packet with some VLAN tag associated to an invalid/inactive VLAN
• In tag-base VLAN, supports egress/ingress packet filter
• Q-in-Q is an efficient method for enabling Subscriber Aggregation
• Supports Multicast VLAN Registration (MVR) management

QoS

• IEEE802.1p and DiffServ. based QoS packet classification
• Supports four level priority queues to prioritize in-bound and out-bound traffic
• Supports two scheduling, WRR and Strict
• Supports priority in a Q-in-Q tag

Other functions:

• Bandwidth Storm Control - Multicast/Broadcast/Unknown Unicast Storm suppression
• Port Mirroring - Support 1: N RX port mirroring; Supports port sniffer function with 3 modes:(TX Monitor Mode, RX Monitor Mode and TX-RX pair Monitor Mode)
• LACP - members of each group 10 ports; Maximum 4 groups are allowed
• GVRP/GARP - IEEE802.1q with GVRP/ GARP
• Multicastingppression.ort.el priority queue - Supports IGMP snooping including active and passive mode
• STP/RSTP/MSTP - IEEE802.1d/w/s

Hardware Specification

• Power Requirement - 24VDC(12~48V)
• Power Consumption - 12W
• Alarm Relay - 1A@24V
• Operating Temperature -40C to +75C
• Humidity - 5% to 95%
• Dimensions 66(W) x 152(H) x 102(D) mm
• Installation - DIN-Rail (Wall Mount: Optional)
• EMI - Comply with FCC Part 15 Class A & CE Mark Approval
• Shock - IEC60068-2-27
• Freefall - IEC60068-2-32
• Vibration - IEC60068-2-6
• Casing IP30
