Всички индустриални суичове могат да бъдат доставени само с предварителна заявка и срок, който подлежи на договаряне. Свържете се с нас за повече информация.

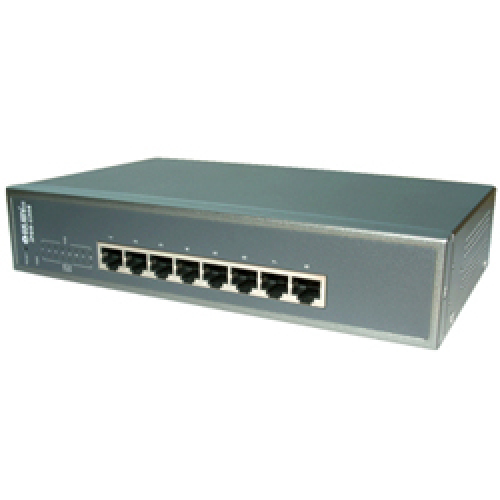

IPGS-1308 supports 8 Port 10/100/1000 Mbps Auto-negotiation, Auto-MDIX Ethernet ports and Power over Ethernet to IEEE 802.3af compliant devices. It’s fully compliant with the standards of IEEE 802.3/u/x/z/ab/af. With web-based management, the network administrator can logon the switch to monitor and configure. In addition, the switch implements the QoS(Quality of Service), Port Mirror,VLAN,LACP,LAN security, Multicasting video stream protocol, and SNMP v2c.IPGS-1308 provides R-Ring technology to enable self-recover time in less than 300ms.

Key Features

• Supports 8 Port 15.4 W PoE Power output
• 130 watts of total power diversification options
• PoE saves your power infrastructure and installation cost
• Port Mirroring helps supervisor monitoring network
• Redundancy: Gigabit R-Ring (Recover Time < 300ms)
• Supports jumbo frame up to 9k bytes
• -10° to 60°C operating temperature
• Wide range power input, DC48V (44~56V)
• IP-30 grade protection case
• Alarm contact
• VLAN
• Storm Control
• QoS with four priority queues
• Port Mirroring
• LACP
• STP/RSTP

PoE Specification

• 8 IEEE802.3af PoE PSE ports
• Endpoint with 48VDC power through RJ-45 pin 1,2,3,6
• PoE activity LED indicator
• 130 watts of total power (15.4 watts/port)
• Auto detect powered device and consumption level
• Smart feature for PD detection, power class and power feeding priority

Hardware Specification

• Power Requirement - DC 48VDC(44~56V)
• Power Consumption - 130W
• Alarm Relay - 1A@24V
• Operating Temperature -10C to +60C
• Humidity - 220(W) x 44(H) x 130.5(D) mm
• Installation - DIN-Rail (Wall Mount: Optional)
• EMI - Comply with FCC Part 15 Class A & CE Mark Approval
• Shock - IEC60068-2-27
• Freefall - IEC60068-2-32
• Vibration - IEC60068-2-6
• Casing IP30
