- 8-Port 10/100/1000Base-T
- 2-Port (100M/1G) SFP
- Port Configuration
|
10M/100M/1G RJ45 Port |
8 |
|
100M/1G SFP Port |
2 |
|
Total Ports |
10 |
- HW Performance
|
Switching Bandwidth |
20Gbps |
|
Forwarding Performance |
14.88Mpps |
|
MAC Address |
8K |
|
Jumbo Frames |
9216 Bytes |
- Environmental Specification
|
Operating Temperature |
0°C to 50°C |
|
Operating Humidity |
10 to 90% RH |
|
Storage Temperature |
-20°C to 70°C |
|
Storage Humidity |
10 to 90% RH |
- Mechanical Specification
|
Dimensions (H) x (W) x (D) mm |
44 x 220 x 134 |
|
Weight |
< 1.5 Kg |
|
FAN Less |
- Power Source
|
AC Input |
100V-240V |
|
DC Input |
— |
|
Dual Input |
— |
- Certifications
|
EN61000-4-5 (for RJ45 Port, Surge 6KV) |
— |
|
Certifications |
CE/FCC Class A |
L2 Switching
|
Spanning Tree |
IEEE802.1D (STP) |
Y |
|
IEEE802.1W (RSTP) |
Y | |
|
IEEE802.1S (MSTP) |
Y | |
|
VLAN |
802.1Q VLAN |
Y |
|
Port-Based |
Y | |
|
VLAN Entries |
4K |
|
|
Private VLAN |
Y | |
|
Voice VLAN |
Y | |
|
Guest VLAN |
— |
|
|
Q-in-Q |
Y | |
|
802.1v Protocol VLAN |
Y | |
|
MAC-Based VLAN |
Y | |
|
IP Subnet-Based VLAN |
Y | |
|
IEEE 802.3ad LACP |
Dynamic Trunk |
Y |
|
Static Trunk |
Y | |
|
GARP/GVRP |
Option |
|
|
IGMP Snooping |
Y | |
|
MLD Snooping |
Y | |
|
Multicast VLAN Registration (MVR) |
Y |
- L3 Features
|
Static Route |
— |
|
DHCP Server |
Y |
- QoS Features
|
Class of Service |
Port Based |
Y |
|
802.1p |
Y | |
|
DSCP |
Y | |
|
TCP/UDP Port |
— |
|
|
Rate Limiting |
Ingress |
Y |
|
Egress |
Y | |
|
Priority Queue Scheduling |
WRR |
Y |
|
Strict Priority |
Y | |
|
Hardware Queues |
8 |
- Security
|
ACLs |
L2/L3/L4 |
Y |
|
IPv6 Support |
— |
|
|
Port Security (MAC-based) |
Y | |
|
IP Source Guard |
Y | |
|
Storm Control |
Y | |
|
RADIUS Authentication 802.1x |
Y | |
|
TACACS+ Authentication |
Y | |
|
HTTPs and SSL (Secured Web) |
Y | |
|
BPDU Guard |
Y | |
|
STP Root Guard |
Y | |
|
DHCP Snooping |
Y | |
|
Loop Protection |
Y |
- Management
|
DHCP |
Client |
Y |
|
Relay |
Y | |
|
Option 66 |
Y | |
|
Option 67 |
Y | |
|
Option 82 |
Y | |
|
Event/Error Log |
Syslog |
Y |
|
SMTP (RFC821) |
Y | |
|
Management Access Filtering |
SNMP |
Y |
|
Web |
Y | |
|
Telnet |
Y | |
|
SSH |
Y | |
|
PoE Management |
Scheduling |
— |
|
Auto-Checking |
— |
|
|
Power Delay |
— |
|
|
SNMP (v1, v2c, v3) |
Y | |
|
RMON ( 1,2,3 & 9 Groups) |
Y | |
|
Software Upgrade |
Y | |
|
Configuration Export/Import |
Y | |
|
Port Mirroring |
Y | |
|
LLDP (IEEE802.1AB) |
Y | |
|
LLDP-MED (IEEE802.1AB) |
Y | |
|
CDP Aware |
Y | |
|
sFlow |
Option |
|
|
IPv6 Management |
Y | |
|
NTP |
Y |
- Device Management System
|
Device Management |
Topology View |
|
|
|
Floor View |
|
||
|
Map View |
|
||
|
Dashboard |
|
||
|
Traffic Monitoring |
|
||
|
Cable Diagnostics |
|
||
|
Switch2go |
iOS Devices |
— |
|
|
Android Devices |
— |
||
|
Find my Switch |
iOS Devices |
— |
|
|
Android Devices |
— |
||
|
Tech Support Online |
— |

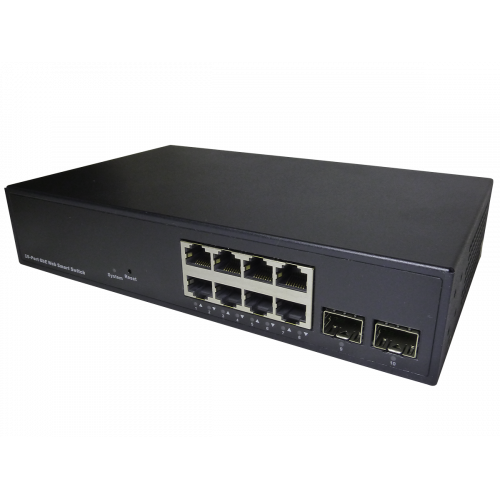

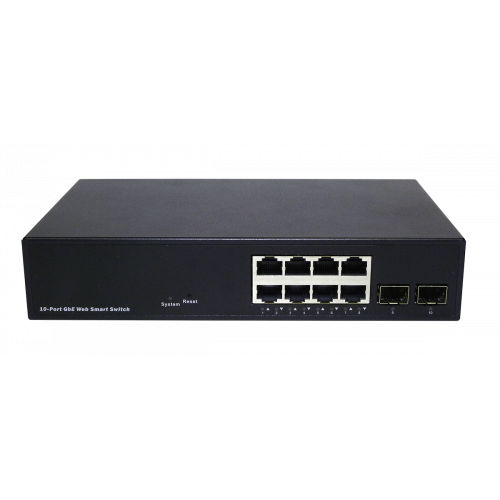

Оптичен суич 10-портa Layer 2 smart+ gigabit GS1510
- Код: 1174
- Модел: GS1510
- Наличност: Разпродаден
-
178.00лв.
- с ДДС: 213.60лв.
