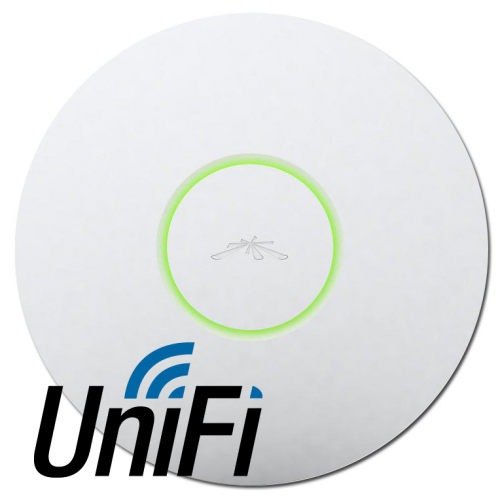

UniFi AP

Dimensions

200 x 200 x 36.5 mm

Weight

290 g (430 g with Mounting Kits)

Networking Interface

(1) 10/100 Ethernet Port

Buttons

Reset

Antennas

Integrated 3 dBi Omni (Supports 2x2 MIMO with Spatial Diversity)

Wi-Fi Standards

802.11 b/g/n*

Power Method

Passive Power over Ethernet (12-24V )

Power Supply

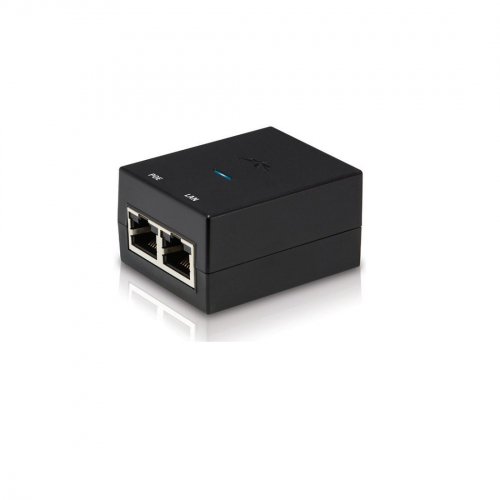

24V, 0.5A PoE Adapter Included

Maximum Power Consumption

4 W

Maximum TX Power

20 dBm

BSSID

Up to Four Per Radio

Power Save

Supported

Wireless Security

WEP, WPA-PSK, WPA-TKIP, WPA2 AES, 802.11i

Certifications

CE, FCC, IC

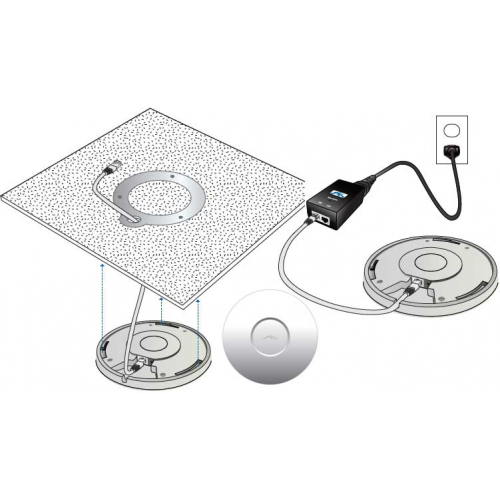

Mounting

Wall/Ceiling (Kits Included)

Operating Temperature

-10 to 70° C

Operating Humidity

5 - 80% Non-Condensing

Advanced Traffic Management

VLAN

802.1Q

Advanced QoS

Per-User Rate Limiting

Guest Traffic Isolation

Supported

WMM

Voice, Video, Best Effort, and Background

Concurrent Clients

100+

Supported Data Rates (Mbps)

Standard

Data Rates

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps
